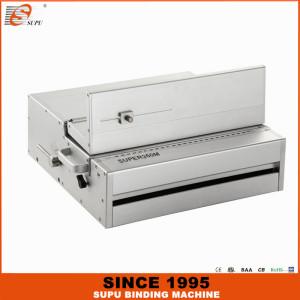

SUPU Electric Interchangeable Dies Punching Machine SUPER360M

SUPU Electric Interchangeable Dies Punching Machine SUPER360M

SUPU Electric  Interchangeable Dies Punching Machine SUPER360M
SUPU Electric  Interchangeable Dies Punching Machine SUPER360MSUPU Electric  Interchangeable Dies Punching Machine SUPER360M
CategoriesPaper Punching Machines
BrandSUPU
ModelSUPER360M
PowerElectricity
Width360mm
Pitchon request
Hole typeon request
Punching thickness25—35sheets
Binding Thicknesson request
Number of punch pinsdepending on the die
Disgagement punch pinsdepending on the die
FOB portningbo/shanghai
Terms of PaymentL/C, Western Union, T/T
Update TimeNov 6,2024
Detail Information

Electric Heavy Duty Hole Punching Machine With Interchangeable Dies  SUPER360M

There is a great punch machine for your binding jobs, Allowing the operator to change the die to a different punching pattern as the jobs change. Punch multiple hole patterns, you would just need to add a Die without need to purchase more equipment. The most popular option in copy shopsThe versatile punching machine is enough for any office environment. Productivity, versatility, and ease-of-use. Die sold seperated

  • There is a great punch machine for your binding jobs

  • Punch multiple hole patterns, you would just need to add a Die

  • without need to purchase more equipment

  • The versatile punching machine is enough for any office environment

  • Productivity, versatility, and ease-of-use.

Maximum:

  • Thickness 34mm

  • Punching up to 30 sheets

  • Max.thickness 50mm

  • Thickness 34mm

  • Punching up to 30 sheets

  • Max.thickness 50mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently

Max punching width

14"(360mm)

Punching thickness

20-35sheets

Punching speed

18000sheets

Paper feed

vertical

Punching margin

adjustable

Punching pins

disengagement

Machine dimension

520x440x300mm

Motor

230V,50HZ/200W
110V,60HZ/200W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


  • Ensure the machine is on a stable surface


  • Parallel to the right push the paper holder


  • Ready machine


  • Select the correct punch profile for the sheet size. Select releasable dies as appropriate


  • To move the lock-handle to “lock-up”


  • Select the correct back margin Depth for the number of sheets.


  • Measure edge guide according to paper thickness and size of the circle


  • Test punching scrap sheets in verticality. To check edge guide setting.


  • Depress the foot pedal


Life testing for 300,000 times punching for each die  and Guarantee for 100,000 times for each die .


Each machine will testing 3000 times before package .
